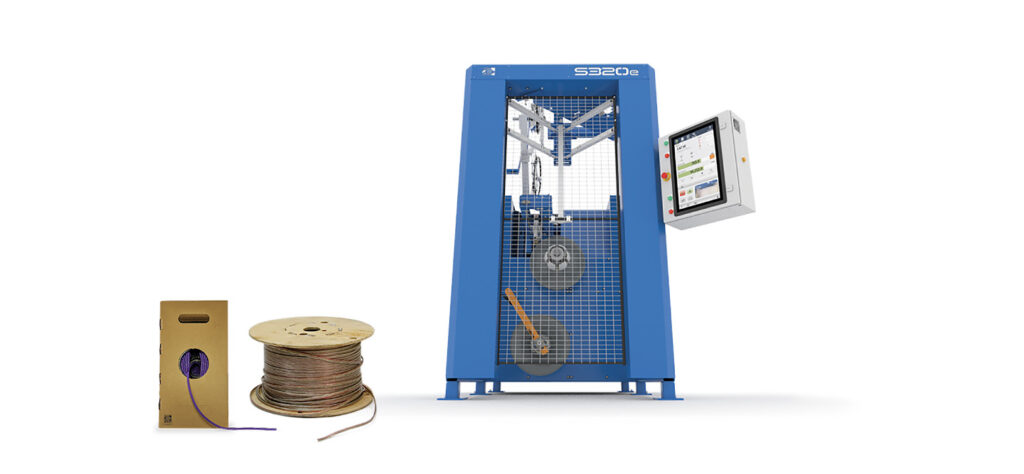

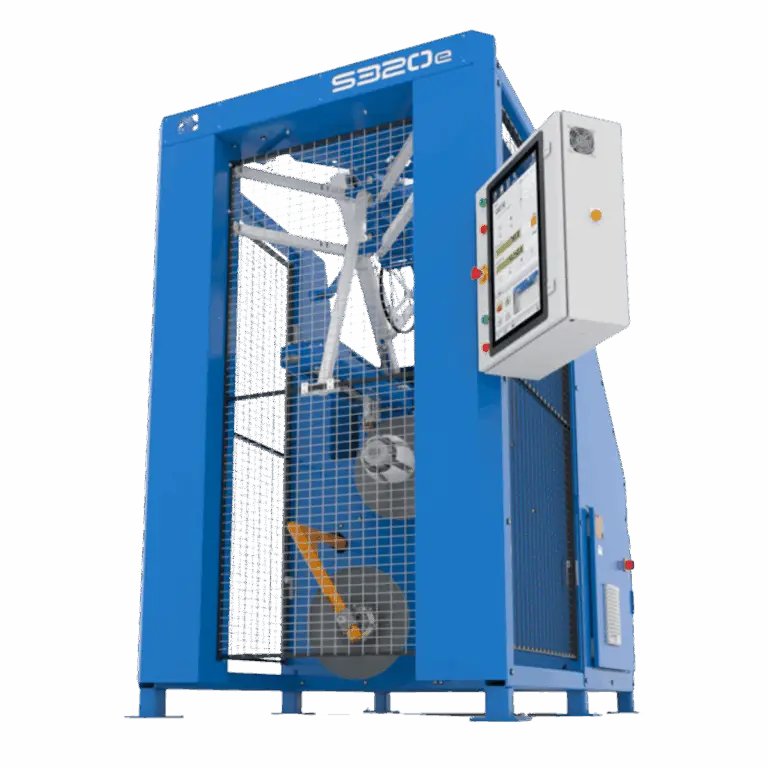

The S320e allows the user to make reels, spools, REELEX, or linear coils all on one
machine via a programmable variable traverse. Bolt-on custom shafts accommodate a variety of spool sizes, and quick-change mandrels allow a wide variety of cable sizes to be wound in REELEX.
The S320e is designed from the ground-up with a focus on safety and ease of use.
Featuring an ISO standard safety design, physical safety cage, interlocks, and safety PLC, the S320e can be used safely by experienced and novice operators alike.
Whether used as an entry-level REELEX machine or a multipurpose winder, the S320e offers exceptional capabilities to manufacturers and distributors big and small. The S320e is affordably priced with leasing options are available.

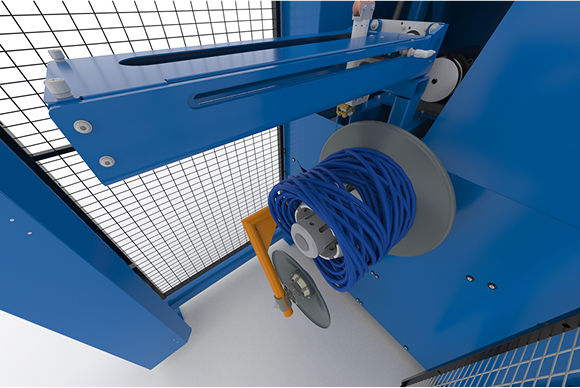

Quick-release mandrels allow users to change mandrel sizes in less than a minute. Bolt-on spindle shafts allow various spindle diameters to be used for different product types.

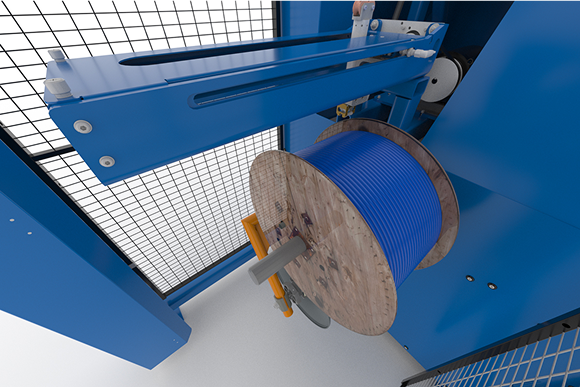

Remove the mandrel spindle shaft and replace with a custom-made shaft accommodating your reel dimensions. Set the traverse width and center via touchscreen and save to a recipe for later use.

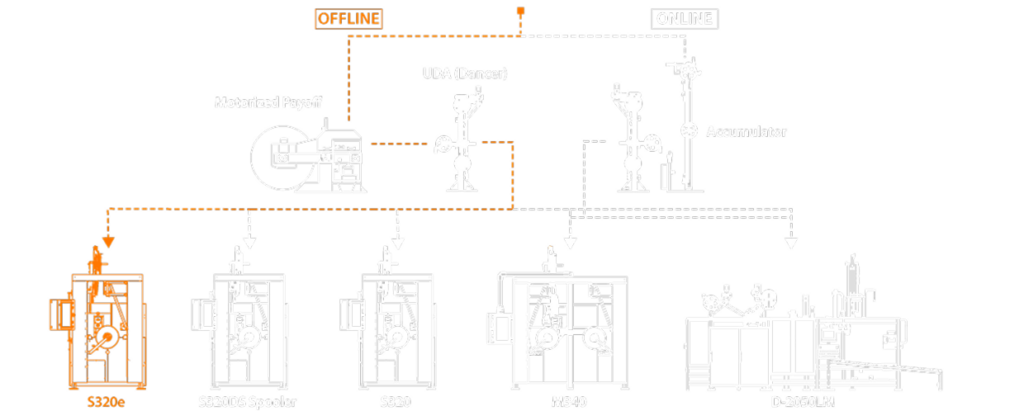

In unison with a REELEX-built motorized payoff and buffer/dancer, a S320e line will run up to 400 feet (122m) per minute. At this rate, the S320e will produce up to 20 packages (1,000 ft (305m) length) in an hour depending on operator skill.
Run REELEX coils and spools on one packaging line.
Have a product on spools but want to offer it in boxes? The S320e allows for infinite variation in packaging options.
Grow your package portfolio and your brand by switching spools out for boxes without swapping equipment.
Rewind your scrap and sell it in smaller length packages. You can even shrink wrap your REELEX coils for simple, low-cost packages.
Currently a licensee? Let us help you develop new REELEX solutions free of charge for your products previously only available on spools. Contact us
Simple and safe operation allows warehouse staff to easily rewind products into any package type.
Expand your offerings with an all-in-one package solution.
Create cut-to-length REELEX packages by pairing with a shrink wrap machine (sold separately).
Buy cable in bulk from manufacturers and repackage on-site, adding to your services and expanding into a new business model.
Ensure safe practices via a rewinder designed from the ground-up to keep your workers safe.
| Capability | Imperial | Metric |
|---|---|---|
| Maximum Spindle RPM | 225 | |
| Number of Spindles | 1 | |
| Online Capable | No | |
| Coils per Hour (Online) | n/a | |

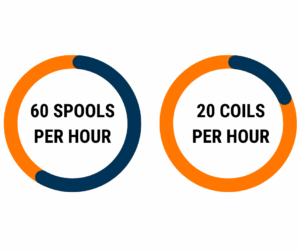

| Coils per Hour (Offline) | 10-20 (based on 1,000ft/305m coil length) | |
| Spools per Hour | Up to 60 (based on 1,000ft/305m coil length) | |
| Operators Required | 1 | |
| Product Diameter Range | ø0.05 in to ø0.50 in | ø1 mm to ø12 mm |
| Available Mandrel Sets | 6 or 8 inch mandrel with 18 inch endforms, 10 inch mandrel with 21 inch endforms. | |
| Spool Shafts | Custom built to customer specifications. | |
| Spool Diameter - Minimum | 6 in | 15 cm |
| Spool Diameter - Maximum | 24 in | 61 cm |
| Spool Width - Minimum | 1 in | 3 cm |
| Spool Width - Maximum | 20.0 in | 51 cm |
| Spool Weight - Maximum | 200 lbs | 91 kg |
| Traverse Width - Minimum | 1 in | 3 cm |
| Traverse Width - Maximum | 20 in | 51 cm |
| Features | |
|---|---|
| Controller |

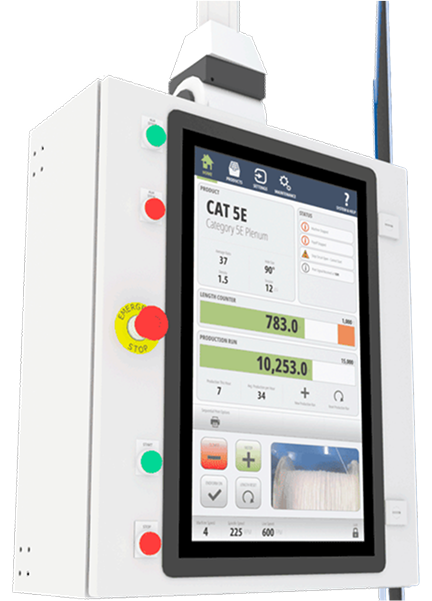

Control Cabinet mounted to the frame includes “Winding Module” PCB-based control system, I/O, power supply, and “off-the-shelf” drives. Operator Interface is a high-definition 21-inch touchscreen HMI featuring on-screen help, product recipe storage, REELEX packaging calculator, maintenance functions, machine setup, multilingual options, and more. Combination of soft and hard buttons allow for easy to implement upgrades and adaptations. Networking capability allows Modbus data to be transmitted and analyzed, supporting real-time machine metrics. |
| Spindle Motor | 3HP (2.2Kw) AC, 1,750 RPM (max.) |
| Traverse Motor | Servo |
| Drives | Industry standard brands |
| Printer Interface | Sequential print reset signals REELEX machine to stop at coil length. Signal landed at I/O module. |
| Buffer System | High-performance buffer with 15” sheaves and extremely lightweight ring sheave is suitable for products such as Category 6, 6A and Fiber Optics. |
| Anti Traverse | Air bladder style wire clamp automatically prevents wire from moving when the machine is stopped. Eliminates deformation of the cable by clamping the cable via soft, high-grip bladder. |
| Length Counter | Light-contact length counter included on buffer frame. Scalar adjustable on HMI. |
| Safety Door | Manual physical safety barrier prevents operator access when running. Door opens to allow the operator to remove the coil. |
| Safety Controls | Dual-channel safety devices including interlocks, light curtains and safety PLC. |
| Color | Sky Blue (RAL 5015) |

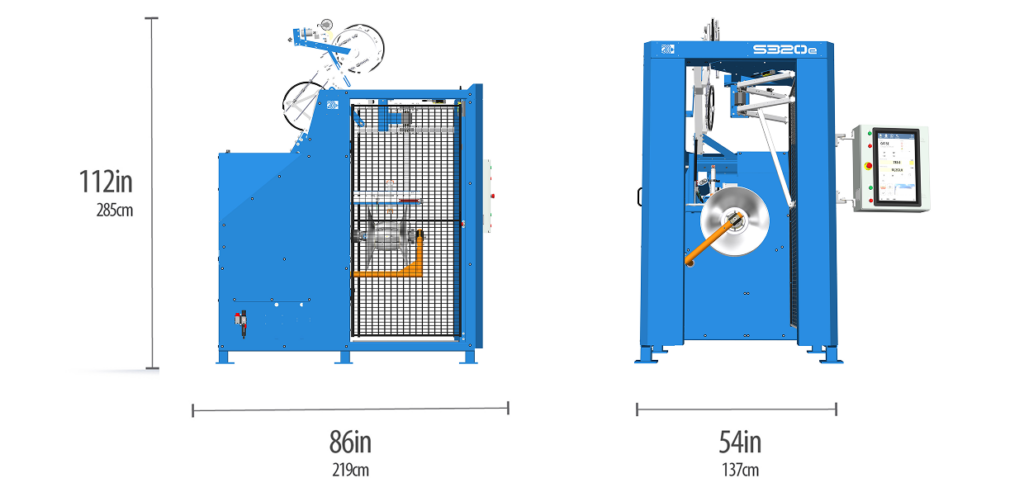

| Length | 88 in | 222 cm |
| Width | 79 in | 201 cm |
| Height | 113 in | 287 cm |
| Weight | 2910 lbs | 1320 kg |
| Minimum Air Supply Requirement | 70 psi | 5 Bar |
| Power Supply Requirement | 380~480VAC, 3-Phase, 20 Amp, 50/60Hz. Transformer is available upon request. |
